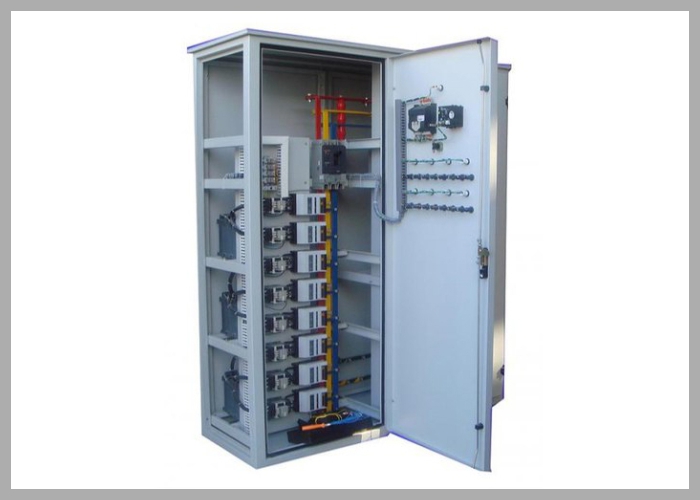

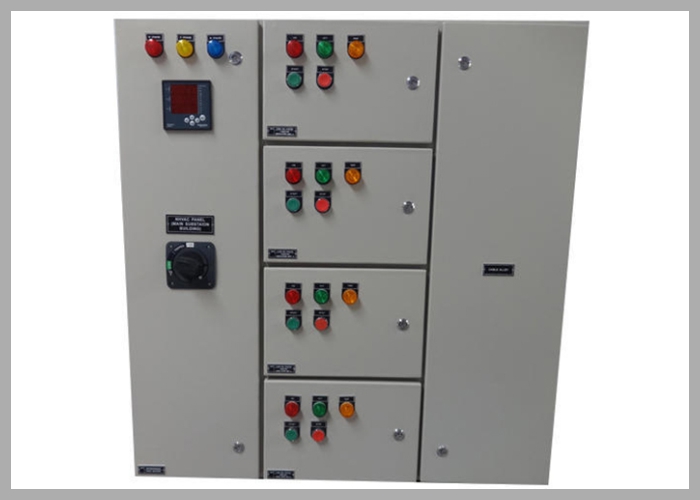

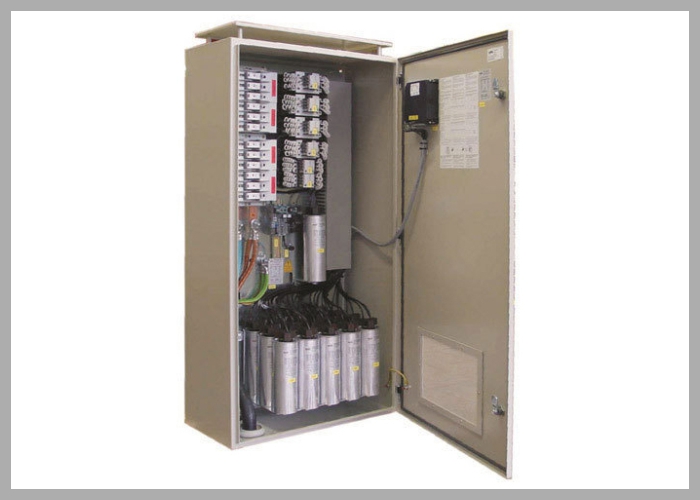

Power factor correction (PFC) panels are designed to enhance the power factor in electrical systems, leading to increased energy efficiency and cost savings. The power factor measures the ratio of active power (used to perform work) to apparent power (total power supplied), serving as a crucial indicator of electrical consumption effectiveness.

Key benefits of PFC panels include:

• Reduction of poor power factor penalties on utility bills by maintaining an optimal power factor.
• Improved voltage stability and support, which protects equipment and reduces maintenance.
• Release of additional system capacity by minimizing reactive power, allowing better utilization of existing infrastructure without costly upgrades.
• Enhanced equipment lifespan through reduced stress and overheating.
• Decreased system losses due to reduced currents, enhancing overall system efficiency.
• Environmental benefits via lower energy wastage and reduced carbon footprint.



Salient Features

• Consistency in Power Factor under fluctuating load conditions.
• Maintenance Free
• Elimination of Power factor penalty
• Prevention of leading power factor



Specifications

• Material: Manufactured from 1.5/2mm Electro-Galvanized Steel Sheet.
• Modular design, Non-compartmentalized
• Finish: Standard RAL-7035. Other color can be provided as per requirement
• Indoor, Floor mounted, Cable entry from bottom.
• Minimum joints hence better reliability and lower losses.
• Incomer MCCB, 3 pole With Extended Rotary Handle for Operation without need of door opening.
• Padlocking & Door Interlock Facility.
• Step switching
• Capacitor duty contactors with Damping Resistors, IEC 60947-4-1/5-1.
• Microprocessor controlled relay
• Can be interfaced with the Building Management System (BMS) for monitoring and controlling
• Capacitors - Standard/Heavy Duty type, IEC 60831-1+2, UL 810 5th Edition
.
• Manufactured: Form 2.
• Rated operating voltage up to 690V.
• Suitable for both internal & external mounting (Weather Proof with Canopy).
• Adequate spacing for incoming and outgoing cables.
• Panels for front or rear access to suit application.
• Degree of protection: Upto IP65.
• Maximum safety & reliability.
• Fans with Filters & Louvers for Ventilation inside APFC panel.
• Custom design according to client requirements.
