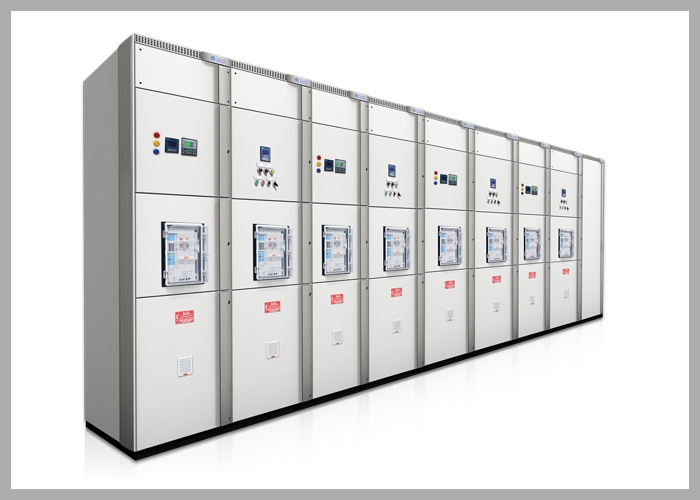

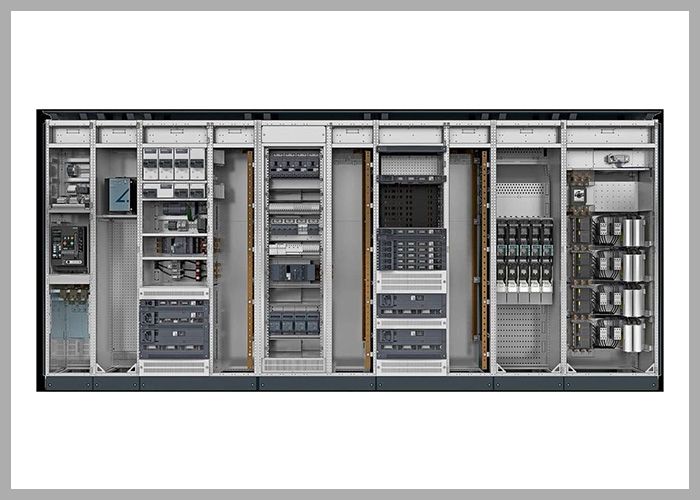

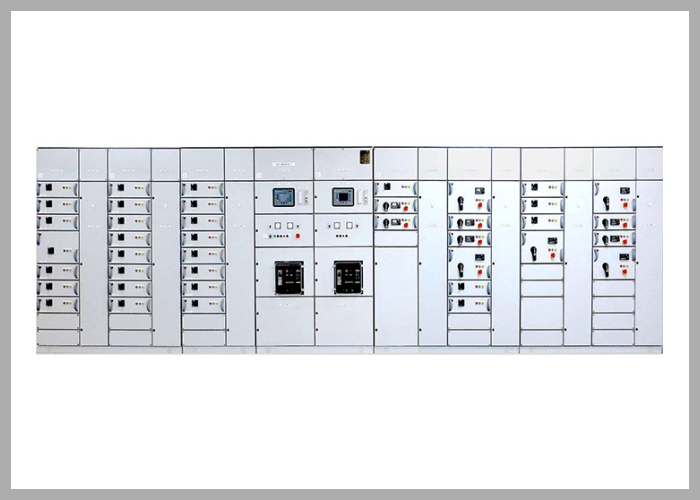

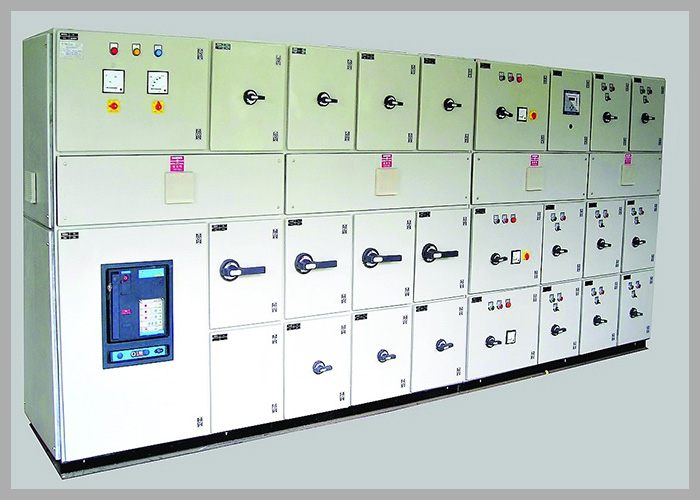

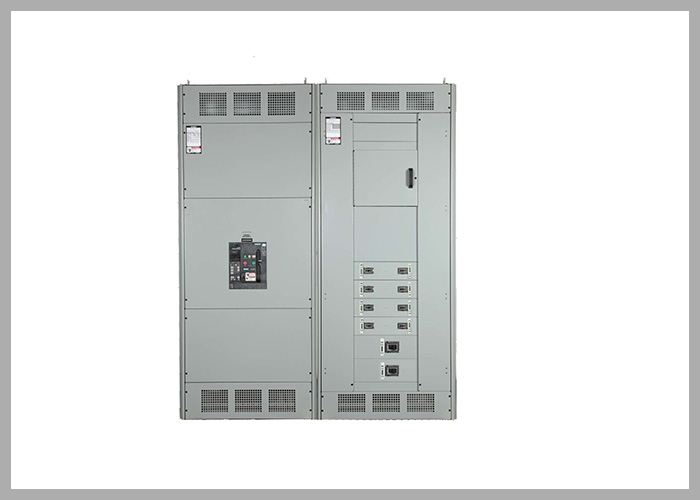

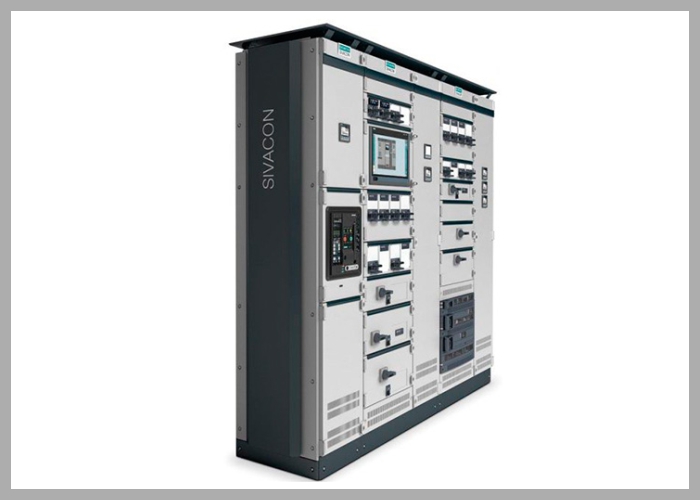

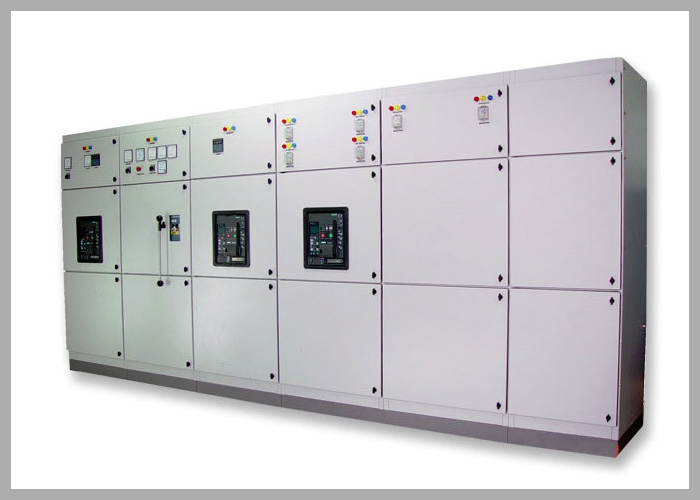

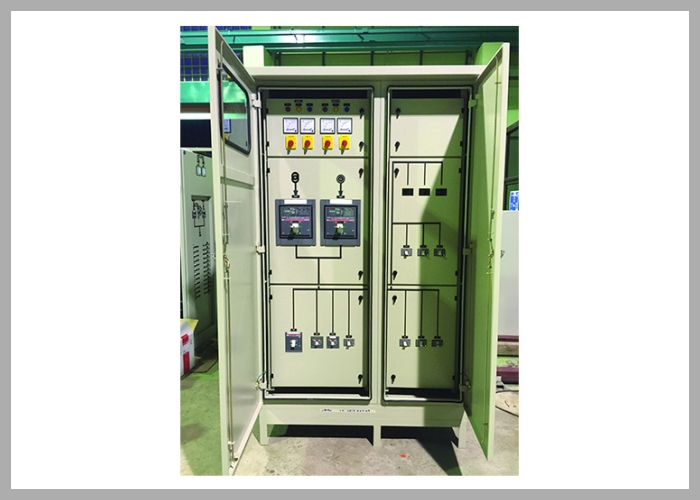

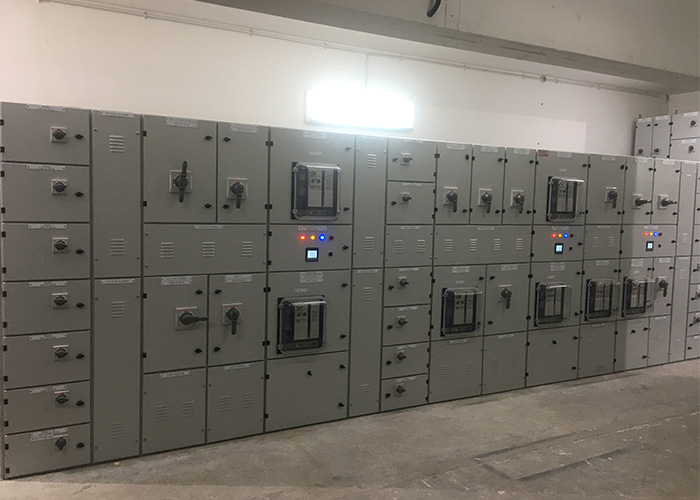

Main Distribution Boards encompass a variety of switchboards designed for diverse applications. These switchboards are tailored to meet the rigorous demands of industries, power plants, utility providers, and different types of buildings. Ascon's Main Distribution Boards are custom-engineered and manufactured to align with specific customer requirements, with a strong focus on safety, dependability, ease of installation, and user-friendly operation. This ensures robust and efficient power distribution suitable for high-load industrial and commercial environments.

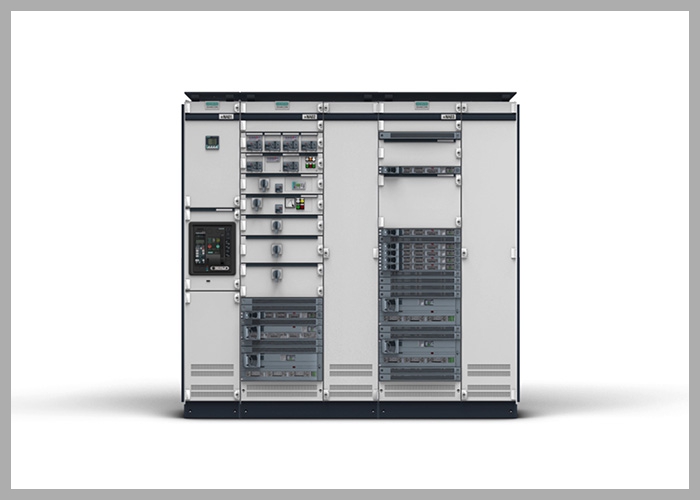

Auric Main Distribution Boards are designed with standard ratings up to 6300A, featuring built-in feeder sections and bus-coupler configurations available for various power distribution needs. Additionally, customized bus duct connections to transformers or intermediate panel sections can be fabricated to suit specific installation requirements, ensuring flexible and reliable electrical distribution solutions for industrial and commercial setups.

• Auric Main Distribution Boards comply with IEC 61439-1 and 2 standards, being ASTA type tested for quality and safety.
• They have a rated insulation voltage of up to 1000V and a rated operational voltage of 690V AC
• These boards are tested for internal arc faults per IEC 61641, classified as PSC assemblies for personal and assembly protection under arcing conditions.
• They feature internal separation options from Form 1 to Form 4b and are designed for ambient temperatures up to 50°C. Constructed from sheet steel with epoxy powder coating in light grey semi-gloss (RAL 7035) at an average thickness of 65 microns, customers may choose alternative finishes.
• Enclosure dimensions are available in widths of 600mm, 800mm, and 1000mm, depths of 800mm or 1000mm, and a height of 2300mm, including an integral plinth. The boards are suitable for both indoor and outdoor applications.
• Busbars are made from hard-drawn, high-conductivity tin-plated copper (99.99% purity). The standard ingress protection rating is IP43, with IP54 available upon request to ensure durability and protection in various environments.
