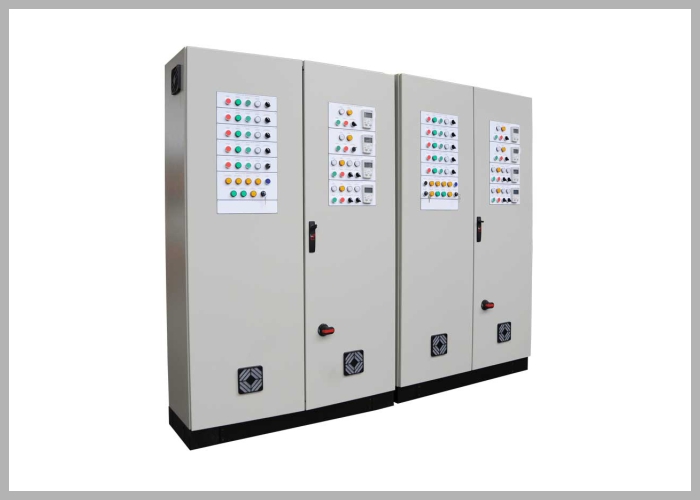

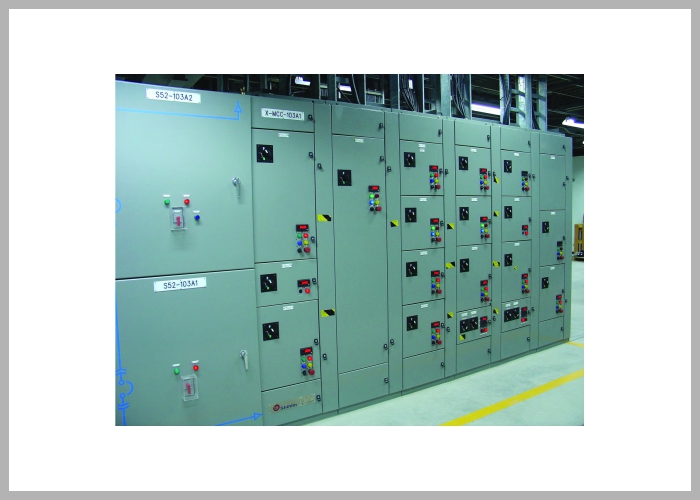

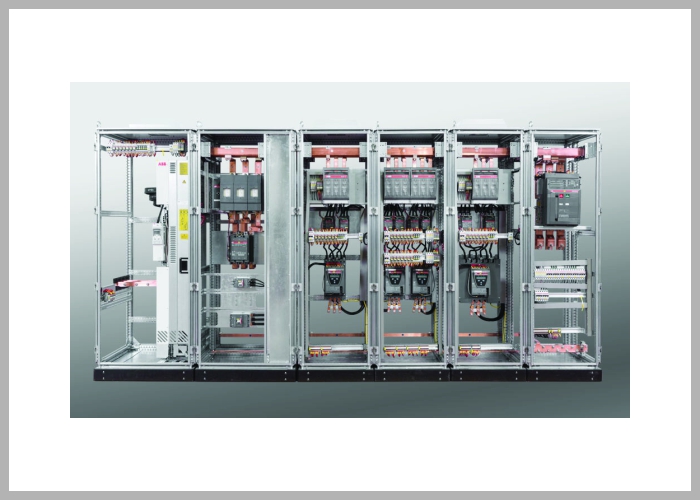

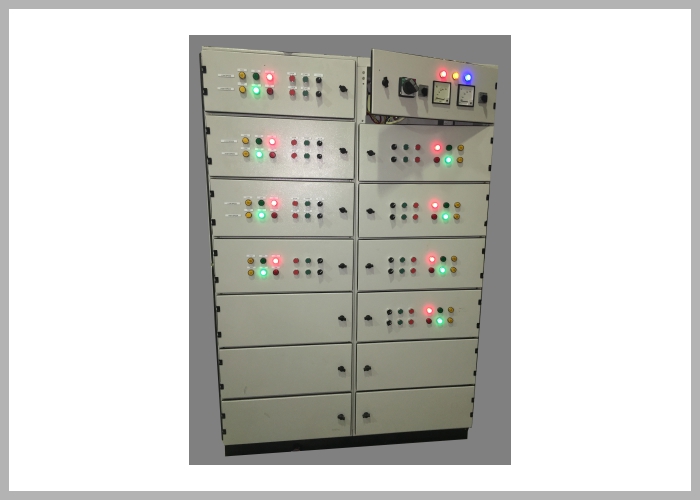

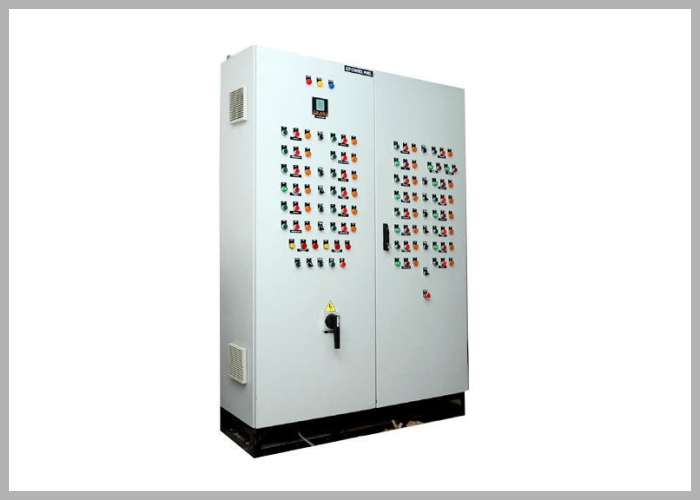

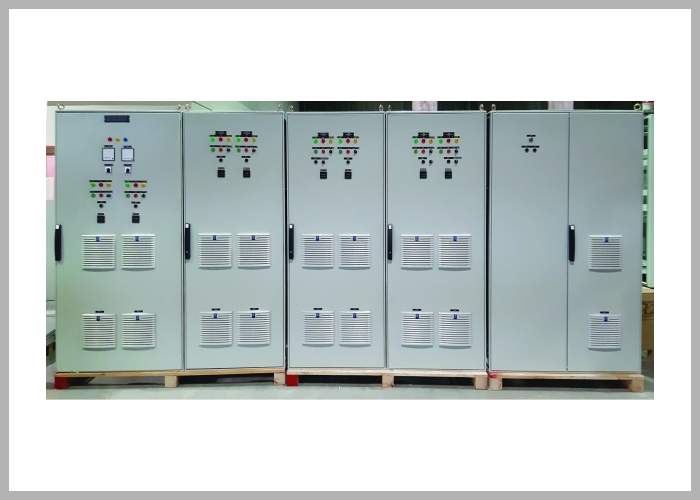

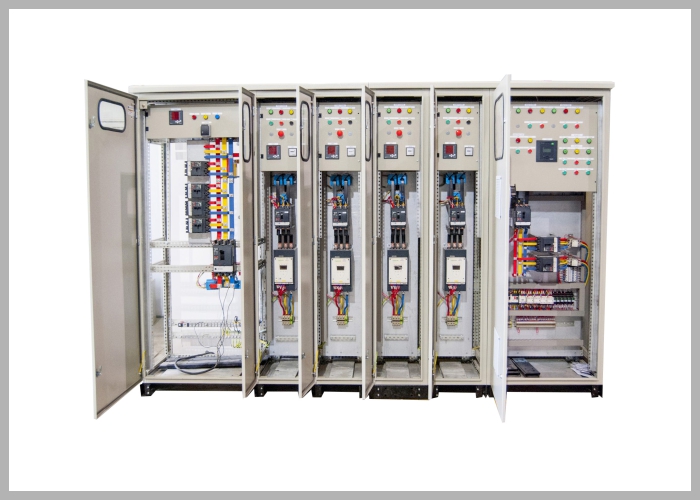

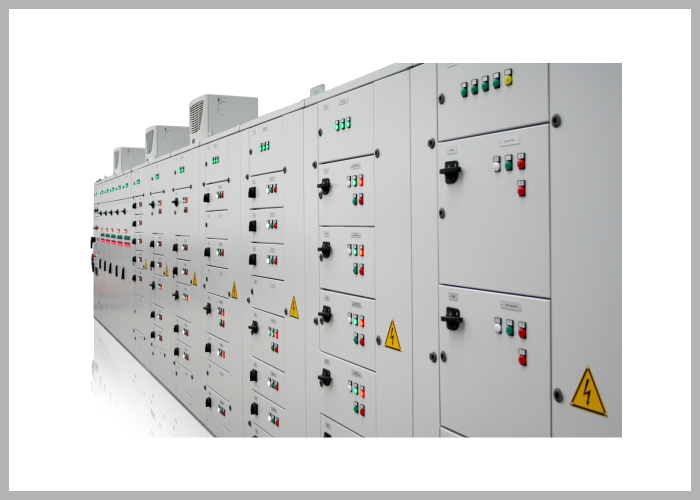

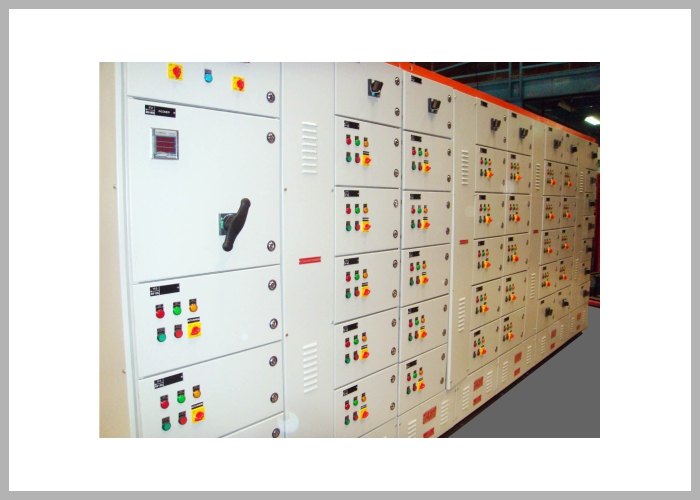

An MCC Panel (Motor Control Center) is a device used to control and optimize the operation of electric motors. These panels come in various configurations, including compartmentalized designs equipped with ACB/MCCB, DOL starters, ATS, soft starters, star delta starters, and variable frequency drives (VFDs). They serve as a centralized control unit, allowing efficient management, protection, and monitoring of multiple motors within industrial and commercial installations. The MCC panel typically includes motor starters, circuit breakers, overload relays, and power contactors, ensuring smooth motor operation and safety. Its modular structure offers flexibility to accommodate different control and automation needs for various motor applications.

Motor control centers are essentially assemblies that group several combination starters together. A combination starter is a single unit that houses the motor starter, fuses or circuit breaker, and a power disconnect device. Additionally, it may include related components such as pushbuttons and indicator lights to facilitate motor control and status monitoring. This design centralizes motor control, simplifies wiring, and enhances operational safety and convenience..

MCC Panels are widely utilized for tasks such as reducing starting voltage, controlling motor direction (reversing), and varying motor speed according to operational requirements. Additionally, they provide crucial protection against overloads and electrical faults, helping to safeguard both motors and connected equipment. These functions ensure efficient motor operation, improved safety, and enhanced durability in industrial and commercial applications.

Features

• Robust design
• Hassle free operation
• Maintenance free
• Ruggedness and reliability
• Space saving design
• One or more enclosed vertical sections
• Horizontal and vertical buses for distributing power
• Principally contains combination motor control units
• Various designs provided like single/double front, fixed type, with marshaling terminations.
• Cubicle type extension on each side.



Applications

• Heavy Metal
• Food Processing Industry
• Petrochemical Industry
• Iron & Steel
• Pump Houses
• Pharmaceuticals Industry
• Water Treatment
• Refineries
• Oil Mills
• Textile Industry
• Sewage Plants



Specifications

• Rated insulation voltage up to 1000V
• Main busbars are rated up to 6300A
• Neutral busbars rated up to 100% of the main busbar
• Earth busbars rated up to 100% of the Neutral busbar
• Fully compartmentalized design up to Form-4b separation.
• Designed for Ambient temperature up to 50 degree celsius
• Available for indoor & outdoor applications, up to IP55
• Standard Color, RAL 7035 (other colors on request)
